This webpage introduces the inner workings of the 68HC11 microcontroller, and provides some details on the assembly language for the 68HC11. This webpage is adapted by Harry Broeders from the "Introduction to 6811 Programming" written by Fred Martin of M.I.T (see this copyright notice).
Most humans, having ten fingers, think in decimal numbers. In computers, information is represented with voltages, and it is most convenient for the voltage levels to represent only two states: a binary one or binary zero. Thus computers process binary digits, or bits.
For convenience, microprocessors group bits together into words. The first microprocessor, the Intel 4004, operated on a word composed of four bits. Today, most microprocessors use eight bit words, called bytes.
In an eight bit numeral, 256 different states can be represented ( 28=256 ). Programmers use these 256 states to represent different things. Some common usages of a byte of data are:
When programmers need to represent larger numerals, they group bytes together. A common grouping is two bytes, often called a (16-bit) word. A word can have 65536 states, since 216 = 65536.
Decimal numbers are painful to use when talking about binary information. To make life easier, programmers started to use the base 16 hexadecimal (or hex for short) numbering system when talking about bits, bytes, and other binary data.
The hex system uses 16 different digits to represent each place value of a numeral. Using hex, one would count as follows: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, F, 10 ...etc. The letters A though F are then used to represent the values of (decimal) 10 through 15, respectively. This is wonderful, because a hex digit (of 16 possible states) is equivalent to four bits exactly. Then, a byte can be represented by exactly two hex digits, and a sixteen bit word by four of them.
The following conventions are supported by Motorola's software products for
their microprocessors. Binary numbers are represented by the prefix
%
. Hexadecimal numbers are specified by $
.
Decimal numbers don't have a prefix. (These aren't the only conventions
that are used in the computer world, but they are standard throughout these
notes and Motorola software.)
binary | decimal | hex |
---|---|---|
%00000000 | 0 | $00 |
%00000001 | 1 | $01 |
%00000010 | 2 | $02 |
%00000011 | 3 | $03 |
%00000100 | 4 | $04 |
%00000101 | 5 | $05 |
%00000110 | 6 | $06 |
%00000111 | 7 | $07 |
%00001000 | 8 | $08 |
%00001001 | 9 | $09 |
%00001010 | 10 | $0A |
%00001011 | 11 | $0B |
%00001100 | 12 | $0C |
%00001101 | 13 | $0D |
%00001110 | 14 | $0E |
%00001111 | 15 | $0F |
%00010000 | 16 | $10 |
%10011100 | 156 | $9C |
%10111101 | 189 | $BD |
%11111111 | 255 | $FF |
%0000000100000000 | 256 | $0100 |
%0000001111101000 | 1000 | $03E8 |
%0000010000000000 | 1024 | $0400 |
%0001000000000000 | 4096 | $1000 |
%1111111111111111 | 65535 | $FFFF |
Lets examine some of the numeric conversions in Figure 1. Notice that four bits equal one hex digit. This is helpful in converting binary to hex. Notice that it is easy to transcribe between binary and hexadecimal representation, but using decimal is often cumbersome.
It is good to know some general quantities. For example, eight bits, or one byte, is 256 values. Then the largest unsigned integer representable in a byte is 255. The largest integer representable in two bytes is 65535.
A byte can be used to represent one character of information. A standard
has been devised for this, called the American Standard Code for Information
Interchange standard, or ASCII code, which is pronounced as "ass-key". ASCII
is almost universally accepted for representing the English character set,
including upper and lower case letters, numbers, and typical punctuation
(like !@#$%&*()
). 16-bit international character codes such
as are also available.
In the back of the Motorola 68HC11 programmer's handbook is the following table of the ASCII codes.
Figure 2: ASCII Codes.
The most important thing to know is first that it exists, but then some other details. First, notice that it only uses seven of the eight bits in a byte. So, there are actually only 128 ASCII characters, using the values $00 to $7F hex.
Printable characters start at $20 hex (32 decimal). The codes from $0 to $1F are used for things like cursor control, line feeds, and the like. Knowing the ASCII characters becomes important when doing interactive programming on the 68HC11, in which case the user might type ASCII information to the 68HC11 over the serial line, and it would respond in kind. Then, the programmer must deal with the characters as bytes, and the ASCII codes become important.
Microprocessors store their programs and data in memory. Memory is organized as a contiguous string of addresses, or locations. Each memory location contains eight bits of data (this is because the 68HC11 is an 8-bit micro; other processors can have 16 or 32 bits of data at each memory location).
The entire amount of memory that a processor can access is called its address space. The 68HC11 has an address space of 65,536 memory locations, corresponding exactly to 16 bits of address information. This means that a 16-bit numeral can be used to point at, or address, any of the memory bytes in the address space of the 68HC11. Thus four hexadecimal digits (4 bits per digit × 4 digits) can exactly specify one memory location (in which the user will find one byte of information).
In general, any area of memory should be equivalent to any other. Because the 68HC11 is a special-purpose chip, and all of its memory is etched right on the microprocessor chip itself, its designers had to dedicate portions of its memory to particular functions. Figure 3 shows a "memory map" of one of the members of the 68HC11 family of processors, the MC68HC11A8.
Memory Address | Function |
---|---|
$0000 - $00FF | RAM memory (256 bytes) |
$0100 - $0FFF | unused |
$1000 - $103F | special registers (64 bytes) |
$1040 - $B5FF | unused |
$B600 - $B7FF | EEPROM memory (512 bytes) |
$B800 - $DFFF | unused |
$E000 - $FFFF | ROM memory (8192 bytes) |
The first area of memory, from address $00 to $FF, is the chip's random access memory, or RAM. RAM can be both written and erased. It is "volatile," which means that when power is removed from the chip, it loses its state. RAM is typically used for storing data.
Programs and constant data will reside normally in the read only memory, or ROM. ROM means what it suggests: that memory can only be read, not written to like RAM. It is programmed at the factory, in mass quantities. The last hundred bytes or so of the address space, from addresses $FFC0 to $FFFF, are reserved for special interrupt vectors, which are discussed later. This is good for companies that are selling a production version. On the development board we use (the Motorola EVM = EValuation Module) the ROM is replaced by RAM so you can develop and test your programs. On the EVM there is 16K program memory available (in stead of 8K in the 68HC11A8 chip).
Memory Address | Function |
---|---|
$0000 - $00FF | RAM memory (256 bytes) |
$0100 - $0FFF | unused |
$1000 - $103F | special registers (64 bytes) |
$1040 - $B5FF | unused |
$B600 - $B7FF | EEPROM memory (512 bytes) |
$B800 - $BFFF | unused |
$C000 - $FFFF | ROM memory (16384 bytes) |
EEPROM is an acronym for electrically erasable programmable read-only memory. EEPROM is the culmination of a trend in programmable, yet permanent, memory technology.
The first user programmable ROM was PROM. PROM chips can't be erased, so in order to make changes to code, the chip is thrown away and a new one is used. PROM chips are not especially expensive, but this process still imposes a high development cost.
EPROM, or erasable programmable read only memory, was the next step. Most EPROM chips are erased by exposing the chip to ultraviolet light for half an hour. This is a vast improvement over PROM, but unless there is a large supply of blank chips for reprogramming, the programmer will have a long wait time between code downloads.
Many members of the 68HC11 processor family have the latest development in ROM technology: EEPROM, which is electrically erasable. This means that the chip can erase its own ROM, and download new data to be written into it. This allows new programs to be downloaded into the chip in just ten seconds or so. Also, because it is ROM, when the processor is powered down, its program does not go away.
EEPROM is not a substitute for RAM: writing new data in is extremely slow by RAM standards, and can only be done a finite number of times (about one to ten thousand erase/write cycles).
The EEPROM resides at addresses $B600 to $B7FF (512 bytes).
In the middle part of the address space, starting at address $1000, is an area for special control registers. By storing and reading values from this area of memory, you can control input/output functions like the serial ports, sensors and motor ports, and a host of other 68HC11 special functions. These features are discussed later.
A microprocessor does its work by moving data from memory into its internal registers, processing on it, and then copying it back into memory. These registers are like variables that the processor uses to do its computations. There are two different types of registers: accumulators, and index registers.
Accumulators are used to perform most arithmetic operations, like addition, subtraction, or performing logical and bit operations (and, or, invert). Results of such operations are often placed back into a register; for example, an instruction may add something to the "A" register and place the sum back into that same register. It is for this reason that the name accumulator is appropriate for these register types: they accumulate the results of on-going computations.
Index registers are used to point at data that is located in memory. For example, in the add operation just described, the addend (the number getting "added in" to the sum) might be indexed by the "X"' register, meaning that the X register is being used to indicate the address of the data in memory.

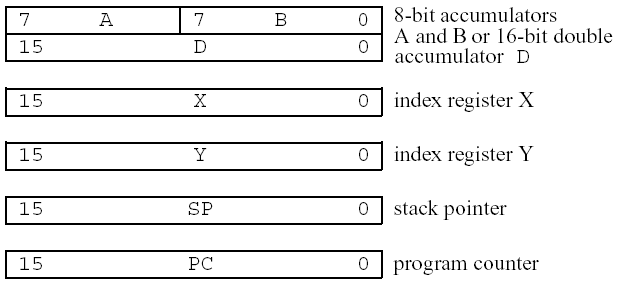

Figure 5 shows the "programmer's model" of the registers of the 68HC11.
Figure 5: Programmer's Model of 68HC11 Registers
The 68HC11 has two accumulators, labeled A and B. Each are 8-bit registers: they hold one byte of data.
The general-purpose index registers are the X and Y registers. These are 16-bit registers and are most commonly used to address data in memory.
The A and B registers can be used together as a 16-bit arithmetic register, in which case they are named the D register. As indicated in the diagram, the A register forms the "high bits," or most significant digit, in this mode.
The Stack Pointer, or SP register, is used to store the location of the program stack. The stack, which is explained in detail later, is used for temporary storage of data, and to store the return address before a subroutine is called.
The Program Counter, or PC, is used to keep track of the current instruction being executed. The PC is automatically incremented as the microprocessor proceeds through the instruction stream.
When a microprocessor runs a program, it advances sequentially through memory, fetching and executing one instruction at a time. As mentioned earlier, the PC (program counter) register keeps track of the address of the instruction currently being executed. The microprocessor automatically advances the PC to the next instruction after it is finished executing the current one.
Consider a typical instruction: load a number into the A register. The machine
code for this instruction is (in hex): 86 nn
, where
nn
is the byte to be loaded into the register. The hex value
$86
is called the operational code, or
op-code, that signifies the "load A register" instruction.
Instructions may be one, two, three, or four bytes long, depending on what
their function is. When the microprocessor encounters the byte
$86
in the instruction stream, it knows, "I'm going to fetch
the next byte of data, and load that into my A register." After the
microprocessor evaluates the first byte of an instruction, it knows how many
more bytes it needs to fetch to complete the instruction, if it is longer
than one byte. Then, it executes the next instruction, and so on, ad infinitum.
Instructions take varying numbers of machine cycles to execute, depending on their complexity. The 68HC11 we're using operates at a frequency of 2 megahertz (MHz.), meaning that it executes 2,000,000 machine cycles per second. The period of a machine cycle is then 0.5 microseconds (µsec), so an instruction that requires 3 machine cycles will take 1.5 µsec of real time to execute.
In general, longer instructions (those needing two, three, or four bytes) take longer (more machine cycles) to execute, although there are some exceptions to this rule.
The terms machine code and assembly language refer to the same thing: the program that is executed directly by the microprocessor. However, these terms refer to the program in different states of development. Machine code usually refers to the raw data stored as a microprocessor's program. This is commonly described in the hexadecimal notation we've been using.
Assembly language is a set of mnemonics, or names, and a notation that is a readable yet efficient way of writing down the machine instructions. Usually, a program that is written in assembly language is processed by an assembler program, that converts the mnemonic instructions into machine code. This output from the assembler program is often called the object code, which can then be executed directly by the microprocessor.
In the 68HC11 assembly language, the "Load A register" instruction that we discussed earlier is written as follows:
LDAA #$80
The word "LDAA
" is the assembly language mnemonic for "LoaD
Accumulator A." Then, the #$80
is the hexadecimal value
to be loaded (the value $80 was chosen at random).
When a 68HC11 assembler program processes an input file, it knows the mnemonics for all of the 68HC11 instructions, plus their corresponding op-codes. It uses this information to create the object code file.
The assembly process is a straight-forward, mechanical operation. Each assembly-language instruction is converted to one machine-language instruction (though that instruction may be one to four bytes in length). Assembler programs lack much of the sophistication that high-level language compilers must have.
But, assemblers typically have features to make writing assembly programs easier. These features allow the creation of symbolic labels for constant values or memory addresses, perform arithmetic in binary, decimal, and hex format, and convert character strings to binary values (among other functions).
The THRAss11 68HC11 assembler is described later. Rather than presenting an overview of assembly language all at once, 68HC11 instructions are introduced throughout this document in a progressive fashion.
In our previous example (LDAA #$80
), the hex value $80 is loaded
into the A register. This method of loading data into the register is called
immediate addressing, because the data to be loaded is located
"immediately" in the instruction itself. Immediate addressing is commonly
used to load a known piece of data into a register.
There are other ways to address data bytes that need to be operated on. These different methods are known as addressing modes. Other than the immediate addressing mode, most addressing modes provide ways of accessing data that is stored somewhere in memory.
The extended addressing mode is one way to access data stored in memory. In this mode, the 16-bit address of a memory byte is specified in the instruction. For example, the instruction
LDAA $1004
will load the A register with the contents of memory location $1004. This instruction uses three bytes of memory: one byte is the op-code, and two more bytes are needed to specify the 16-bit memory address.
The direct addressing mode is similar to the extended mode, but works only for data stored in the first 256 bytes of the chip's address space, from addresses $00 to $FF. This happens to be the chip's RAM, as shown in Figure 3, the 68HC11 Memory Map. So, the direct mode is used to store and load data to the RAM.
In the direct mode, only one byte of address data is required to specify the memory address, since it is known to be in the first 256 bytes of memory. Instructions using direct addressing may require only two bytes: one for the op-code, and one for the address information. They execute in fewer cycles as a result of this savings. The 68HC11 assembler will automatically choose the direct addressing mode if the address specified is in the range $00 to $FF. Extended addressing could also be used to access this portion of memory, but it would rarely be preferable.
The indexed addressing mode uses the X or Y register as a pointer into memory. The value contained in the index register and an offset byte are added to specify the location of the desired memory byte or word.
Consider the following example: Suppose the X register currently has the value $1000. Then the instruction
LDAA 0,X
will load the A register with the contents of location $1000, and the instruction
LDAA 5,X
will load the A register with the contents of location $1005.
The offset value is contained in one byte of data, and only positive or zero offsets are allowed. This means that only offsets in the range of 0 to 255 decimal are possible.
Why would a programmer use the indexed addressing mode, when the extended addressing mode will access the desired byte directly? The indexed addressing mode is useful when you are repeatedly accessing locations from a particular region of memory, and is useful in part because of the associated offset bytes.
For example, the 68HC11 special register area begins at location $1000 and
ends at location $103F. Suppose there were a series of instructions that
accessed the registers located in this area. We could then set up the X register
as a base pointer, pointing to the beginning of this area of memory
(we'd load the X register with $1000: LDX #$1000
). Then, we
can use the two-byte indexed instructions to do a series of loads, stores,
etc. to the locations in this region in which we are interested.
This is good programming practice because each indexed instruction saves a byte over the extended instruction. Once the cost is paid of loading the X register with the base address (a three byte instruction), each use of an indexed instruction will save code space and execution time.
Indexed addressing is most useful when working with arrays of common data structures. Then, one can set up an index register to point at the base of each data structure and use indexed operations to access individual fields of that data element. To move to the next data element, only the index base pointer needs to be changed, the offsets will then access the subsequent structure.
Finally, there are a few instructions that do not support the extended addressing mode (they support only direct and indexed addressing), so if one must work with a byte not in the direct addressing area, then indexed addressing must be used.
Here is a list of all of the addressing modes that are supported on the 68HC11 architecture:
#
" before the data byte or word. Example: LDAA #$80
loads the A register with the hex number $80.
STAA $80
stores the A register to the memory location $0080.
STAA #$1000
stores the contents of the A register at
memory location $1000.
LDAA 5,X
takes the sum of the value currently in the X register
and 5, then loads the A register with the memory byte at that address. Offsets
range in value from 0 to 255.
TAB
transfers the contents of the A
register to to the B register. No external memory address is required.
BRA 5
causes a branch to
be formed that skips five bytes ahead in the instruction stream. Relative
addressing is only used in branching instructions. Offsets range in value
from -128 to +127, allowing jumps both forward and backward in the instruction
stream.
The 68HC11 supports a few different "data types," or ways of representing numbers. Most high-level languages (like C) support many data types, such as integers, floating point numbers, strings, and arrays. In assembly language, a programmer is given only "the bits" and must build more complex data types with subroutine libraries.
The 68HC11 has two data types: 8-bit numbers and 16-bit numbers. This means that there are instructions that process numbers of length eight bits (bytes), and there are instructions that process numbers of length sixteen bits (words).
Keep in mind the range of an eight-bit number versus a sixteen-bit number. An eight-bit number can have 256 different values ( 28=256 ), and a sixteen-bit number can have 65536 different values ( 216=65536 ).
Microprocessors give the programmer a standard set of arithmetic and logical operations that can be performed upon numeric data.
The 68HC11 provides instructions that work on both eight-bit data values (such as the A or B registers or memory bytes) and sixteen-bit data values (such as the X and Y index registers). Earlier processors provided only eight-bit operations; the programmer had to combine them to get sixteen-bit ones. The 68HC11 also provides multiplication and division instructions.
The 68HC11 supports the following instructions:
%11110010
ANDed with
%11000011
yields %11000010)
.
ROR
) of
%11011001
produces %11101100
.
There are a few arithmetic instructions not mentioned here, but they are relatively obscure.
There are two methods of representing binary numbers that are commonly used by microprocessors. Using these two methods, the same string of 1's and 0's that comprise a byte or word can represent two different numbers, depending on which method is being used.
The two methods are: unsigned binary format and two's-complement signed binary format.
The unsigned format is used to represent numbers in the range of 0 to 255 (one byte of data) or 0 to 65535 (one word of data). This is the more simple way of representing data; it is easy to understand because there is a direct translation from the binary digits into the actual numeric value. But, the unsigned format has the limitation that values less than zero cannot be represented.
Here are some unsigned binary numbers and their decimal equivalents:
binary | decimal |
---|---|
%00000000 | 0 |
%00000001 | 1 |
%00000010 | 2 |
%00000011 | 3 |
%00000100 | 4 |
%00000101 | 5 |
%00000110 | 6 |
%10011100 | 156 |
%11100011 | 227 |
%11111111 | 255 |
Signed values are represented using the "two's complement" binary format. In this format, a byte can represent a value from -128 to +127, and a word can represent a number from -32768 to +32767.
The highest bit (most significant, or left-most bit) of the number is used to represent the sign. A "0" in the high bit indicates a positive or zero value, and a "1" in the high bit indicates a negative value.
If the number is positive or zero, then the signed representation is exactly
equivalent to the unsigned one. For example, the largest binary number
representable in a byte, using the signed format is %01111111
.
The leading zero is the sign bit, indicating a non-negative number; the seven
ones that follow are the significant digits.
If the number is negative, then the following process determines its value: invert the significant digits (change zero's to one's and one's to zero's), and add one. Put a minus sign in front of the number, and that is the equivalent value.
For example, what is the value of the signed number %10011011
?
We know this is a negative number, since its high bit is one. To find its
value, we take the significant digits ( %0011011
) and invert
them, obtaining %1100100
. We add one, and obtain
%1100101
. This value converted to decimal is 101; thus, our
original number was equal to -101.
Two's complement is employed because it has one very useful property: signed binary numbers can be added together like unsigned ones, and results of standard addition and subtraction processes produce correct signed values.
Consider the following example, which shows an addition of two signed binary numbers to produce a valid result:
10011011 (-101 decimal) + 01110000 ( 112 decimal) ---------- (1)00001011 ( 11 decimal)
Ignoring the carry out of the highest bit position, we can see that performing regular binary addition on the two numbers gives us the correct result. This is important, because then the microprocessor doesn't have to implement different types of addition and subtraction instructions to support both the signed and unsigned data representations.
Whenever the 68HC11 performs any type of arithmetic or logical operation, various condition codes are generated in addition to the actual result of the operation. These condition codes indicate whether or not the following events happened:
There is a special register in the 68HC11, called the condition code register, or CCR, where this information is kept. Each condition is represented by a one-bit flag in the CCR; if the flag is 1, then the condition is true. The CCR has eight flags in all; four more in addition to the four mentioned.
Each flag has a name: the zero flag is called Z; the overflow flag is V, the negative flag is N, and the carry flag is C.
The usefulness of these flags is that programs may branch depending on the
value of a particular flag or combination of flags. For example, the following
fragment of code will repeatedly decrement the A register until it is zero.
This code fragment uses the "branch if not equal to zero" instruction
(BNE
) to loop until the A register equals zero.
Loop DECA * decrement A register BNE Loop * if not zero, jump back to "Loop" ... * program execution continues here ... * after A is zero
An entire set of these conditional branching instructions allows the programmer to test if the result of an operation was equal to zero, not equal to zero, greater than zero, less than zero, etc.
Some of the conditional branching instructions are designed for testing results of two's complement operations, while others expect to test results of unsigned operations. As mentioned earlier, the same arithmetic operations can be used on both signed and unsigned data. This is true, but the way that one must interpret the condition codes of the result is different. Fortunately, the 68HC11 branch instructions will perform this interpretation properly, provided the correct instruction is used for the type of data the programmer has in mind.
Here is a list of some of the conditional branching instructions supported by the 68HC11:
BEQ:
Branch if Equal to Zero
BNE:
Branch if Not Equal to zero:
BCC:
Branch if Carry is Clear
BCS:
Branch if Carry is Set
BLO:
Branch if Lower
BGE:
Branch if Greater Than or Equal
Other branching instructions work with signed data and check the proper combination of flags to tell if results are greater or less than zero, etc.
One important thing to remember about branching instructions is that they use the relative addressing mode, which means that the destination of a branch is specified by a one-byte offset from the location of the branch instruction. As such, branches may only jump forward or backward a maximum of about 128 bytes from the location of the branch instruction.
If it is necessary to branch to a location further away, the JuMP instruction
(JMP
) should be used, which takes an absolute two-byte address
for the destination. The destination of a JMP
instruction thus
may be anywhere in memory.
If necessary, use a conditional branch instruction to jump to a
JMP
instruction that jumps to far-away locations.
Almost all microprocessors support a special type of data structure called the stack. A stack stores data in a last-in, first-out (LIFO) method.
To visualize the stack, one may imagine a dishwasher who is washing a sink full of dishes. As he washes a dish, he places it on top of a pile of already-washed dishes. When a chef removes dishes from the pile, the dish that she removes is the last dish that the dishwasher placed on the pile. In this way, the stack of dishes stores the dishes using a last-in, first-out algorithm.
The stack on the 68HC11 works the same way. Instead of a stack of dishes, the 68HC11 stores bytes in a contiguous area of memory. Instead of a dishwasher and a chef, the 68HC11 uses a special register, called the stack pointer or SP, to keep track of the location of the stack in memory.
When a number is placed on the stack (called a stack push), the number is stored in memory at the current address of the stack pointer. Then the stack pointer is advanced to the next position in memory.
When a number is taken off the stack (called a stack pull), the stack pointer is regressed to the last location stored, and then the number at that memory location is retrieved.
The stack has many different uses. One use is temporary storage of data.
Suppose there is a number in the A register to be stored and then retrieved
a few instructions later. One could push it on the stack (PSHA
)
to save it, and later pull it off the stack (PULA
) to restore
it.
The data in several different registers may be temporarily stored and retrieved
in this way. It is important to remember that data goes on and comes off
the stack in a particular order. If data is stored with a PSHA
and then a PSHB
(push A register, push B register), it must
restored with the sequence PULB
, PULA
(pull B register,
pull A register).
The most important use of the stack is involved with subroutines. Subroutines are pieces of code that may be "called," or executed, by your main program. In this way, they are like utility routines that your software uses.
For example, suppose a program often has need to execute a delay, simply waiting 1/10 of a second. Rather than repeatedly writing the code to perform the delay, it can be written just once, as a subroutine. Then, whenever the main code needs execute the delay, it can just call the subroutine.
The key thing about executing a subroutine properly is knowing where to return when it finishes. This is where the stack comes in. When a subroutine is called, the 68HC11 automatically "pushes" the return address -- the place to continue after the subroutine is done -- onto the stack. Then, it branches to begin executing the subroutine.
When the subroutine is finished, the 68HC11 pulls the return address directly off the stack and branches to that location.
One may think, "Well, we don't need a stack for this; we could just have one particular location where the return address is stored. We could just look there when returning from a subroutine."
Actually, that is not a bad solution, but using the stack gives us a special power: it enables nested subroutine calls. What happens when a subroutine calls a subroutine? If a stack is being used, the second return address simply gets pushed on top of the first, so that the first return address remains intact. In the other method, the first return address would be overwritten and destroyed when the second subroutine call occurred.
One detail worth mentioning about the stack's implementation on the 68HC11 is that the stack builds downwards in memory. That is, when a number is pushed on the stack, the stack pointer is actually decremented to point to the next available memory location. This is somewhat counter-intuitive, but it is irrelevant to the function of the stack.
Since the stack is a dynamic structure, it must be located somewhere in 68HC11 RAM (read/write memory). It is customary to initialize the stack at the top of user RAM. Then, as the stack grows, it moves downwards towards location $0000.
A good way to crash the processor is to repeatedly push a value on to the stack and forget to pull it off. If this mistake is made inside a program loop, all of RAM will easily be filled with garbage. When a subroutine attempts to return to its caller, the return address will be nowhere in sight.
Just remember: each stack push must be matched with a stack pull. Each subroutine call must be matched with a return from subroutine.
Interrupt routines are a type of subroutine that gets executed when special events happen. These special events are often called interrupts, and they may be generated by a variety of sources. Examples of things that may generate interrupts are: a byte coming in over the serial line, a programmable timer triggering, or a sensor line changing state.
When an interrupt happens, the 68HC11 stops what it is doing, saves its local state (the contents of all registers), and processes the interrupt. Each interrupt has code associated with it; it is this code that is executed when the interrupt occurs.
Interrupts may be used to give the appearance that the 68HC11 is doing several things at once. There are a several reasons for this:
If multiple interrupts are being used, it is possible for an interrupt to occur during the servicing of a different interrupt routine. Typically, interrupting an interrupt routine is not a good idea. The 68HC11 deals with this nested interrupt condition by queueing up the interrupts and processing them sequentially, based on a predetermined interrupt priority scheme.
In their usage of the stack, interrupts are implemented quite like subroutines. When an interrupt call is processed, however, the state of all of the 68HC11 registers is saved on the stack, not just the return address. This way, when the interrupt routine returns, the processor can continue executing the main code in exactly the same state that it left it.

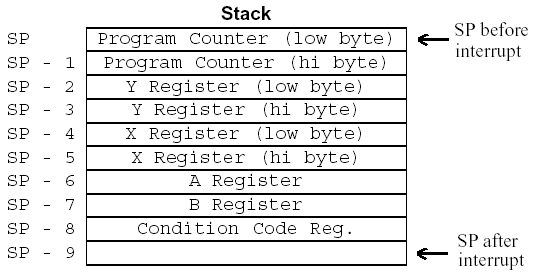

Figure 7 shows the configuration of the stack immediately after an interrupt call.
Figure 7: Diagram of Stack After an Interrupt Call
When an interrupt occurs, the 68HC11 must know where the code associated with that interrupt is located. An interrupt vector points to the starting address of the code associated with each interrupt. When an interrupt occurs, the 68HC11 first finds its associated interrupt vector, then jumps to the address specified by the vector.
These interrupt vectors are "mapped" into specific areas of system memory. In the 68HC11 architecture, the interrupt vectors are located at the top of memory. This area, reserved for the interrupt vectors only, starts at address $FFC0 and continues to the end of memory, address $FFFF. Two bytes are needed for each interrupt vector; thus it may be calculated that the 68HC11 has ($FFFF - $FFC0 + 1) ÷ 2 total interrupt vectors. (This is 32 decimal.)
The location of each interrupt vector is predetermined. For example, the
RESET
interrupt is generated when the system reset button is
pressed. The RESET
vector is located at addresses $FFFE and
$FFFF, the very last two bytes of memory. When the reset button is pressed,
the 68HC11 jumps to the location specified by the pointer contained in those
two bytes. Since pressing reset should restart the microprocessor, the reset
vector usually points to the start of the main code.
Figure 8 shows a map of the memory space from locations $FFC0 to $FFFF and the interrupt vectors associated with each location. Please refer to it later, when we discuss the purpose of some of the vectors that are listed here.
Address | Purpose |
---|---|
$FFC0 | reserved |
$FFC2 | reserved |
$FFC4 | reserved |
$FFC6 | reserved |
$FFC8 | reserved |
$FFCA | reserved |
$FFCC | reserved |
$FFCE | reserved |
$FFD0 | reserved |
$FFD2 | reserved |
$FFD4 | reserved |
$FFD6 | SCI serial system |
$FFD8 | SPI serial transfer complete |
$FFDA | Pulse Accumulator Input Edge |
$FFDC | Pulse Accumulator Overflow |
$FFDE | Timer Overflow |
$FFE0 | Timer Output Compare 5 (TOC5) |
$FFE2 | Timer Output Compare 4 (TOC4) |
$FFE4 | Timer Output Compare 3 (TOC3) |
$FFE6 | Timer Output Compare 2 (TOC2) |
$FFE8 | Timer Output Compare 1 (TOC1) |
$FFEA | Timer Input Capture 3 (TIC3) |
$FFEC | Timer Input Capture 2 (TIC2) |
$FFEE | Timer Input Capture 1 (TIC1) |
$FFF0 | Real Time Interrupt (RTI) |
$FFF2 | /IRQ (external pin or parallel I/O) (IRQ) |
$FFF4 | /XIRQ (pseudo non-maskable interrupt) (XIRQ) |
$FFF6 | Software Interrupt (SWI) |
$FFF8 | Illegal Opcode Trap |
$FFFA | COP failure |
$FFFC | COP clock monitor fail |
$FFFE | system reset (RESET) |
The 68HC11 chip includes many features that often must be implemented with hardware external to the microprocessor itself. Some of these features include:
This section explains how to use these advanced features of the 68HC11.
The 68HC11 uses a particular area of memory to interface with the special functions. This area of memory is called the register block and is located from addresses $1000 to $103F.
The general method of controlling the various features of the chip is by reading and writing data to the different registers in the register block. Since the register block is mapped into memory, the typical 68HC11 instructions for reading and writing data to any area of memory are used to interact with these registers.

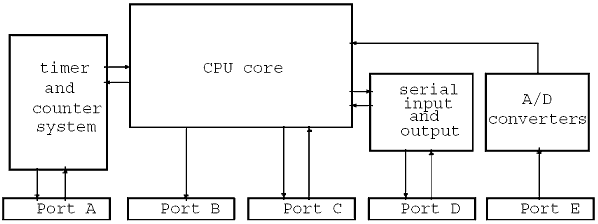

Figure 9 shows a simplified block diagram of the 68HC11 architecture. This diagram depicts the 68HC11 in "single chip" mode. A more complete block diagram may be found in the Motorola M68HC11 Reference Manual.
Figure 9: Simplified Block Diagram of 68HC11
When scanning the diagram, notice that some of the ports have arrows running in both directions (ports A, C, and D). These ports are bidirectional, meaning that they can be used for either input or output.
Each port contains eight data bits, making it equivalent to one byte of data. Each data bit is mapped to a physical pin on the microprocessor package. This means that when data is written to a particular output port, that data appears as voltage levels on the real pins connected to that port. In this way, the 68HC11 can interface with external devices.
In many cases, ports may contain a mixture of pins used for either input or output. In other cases, particular pins in a port are dedicated to a specific function.
Following is a brief description of each port on the diagram. The rest of this section explains how to use each port in detail.
The following section begins the in-depth explanation of these ports with Port B.
Port B is controlled by a register located at address $1004. In the 68HC11
literature, this register is named PORTB
. Port B is implemented
as eight output pins on the 68HC11. The following two instructions write
the value %00010000
at the Port B register location, $1004.
LDAA #%00010000 STAA $1004 * store A at "PORTB" location
Port C may be configured as an output port and used in a similar fashion
to Port B using the DDRC
(data direction for Port C) register,
as detailed in the Motorola literature.
Port C is controlled by reading the value of the location $1003. Whatever input signals that are present on the Port C lines are "latched" into Port C during the read operation.
The Port C register is referred to by the name PORTC
.
The following code sample reads the digital inputs from Port C and branches
to the routine called AllZero
if the input from Port C is zero.
LDAA $1003 * load Port C value into A BEQ AllZero * if zero, branch
Port E is the analog input port. This port is controlled by several registers and may be configured in a few different ways.
In order to use the analog-to-digital (A/D) converter, the A/D system must first be powered-up (its default state is off).
The System Configuration Options register (OPTION
) is used to
turn on the A/D system. Bit 7 of this register must be set to "1" in order
to turn on the A/D system:
LDAA #%10000000 * bit 7 set to 1 STAA $1039 * location of OPTION register
The A/D system is actually configured as two banks of four channels each. In one of its operating modes, it repeatedly samples values from either of these four-channel banks.
In another operating mode, the A/D system will repeatedly sample only one of the eight input channels. Because sampling takes a finite amount of time (about 17 µsec), this is a useful mode if one wants to look at one channel very closely.
The A/D Control Status Register (ADCTL
) is used to select these
different modes. Figure 10 is a pictorial of the ADCTL
register.
Figure 10: Diagram of ADCTL
Register
Bit 7 of the ADCTL
register, CCF
, is the Conversions
Complete Flag. It is set to "1" when the A/D system has finished converting
a set of four values. It is important to wait for this flag to be set only
when the mode is changed of the A/D system. Then, the CCF
will
be set to zero, and one should explicitly wait for it to turn to one before
trusting the converted values.
Bit 5 is SCAN
, the Continuous Scan Control. If this bit is set
to one, the A/D system will repeatedly convert values. If it is set to zero,
the A/D will convert four values and stop. For typical usage, it is probably
simpler to set it to one and expect the A/D system to continuously convert
values.
Bit 4 is MULT
, the Multiple Channel/Single Channel Control.
If this bit is set to one, the A/D will convert banks of four
channels. If it is set to zero, the A/D will convert one channel
only.
Bits 3 to 0 select the channel(s) to be converted. The results of the A/D
conversion appear in four other registers called ADR1
,
ADR2
, ADR3
, and ADR4
.

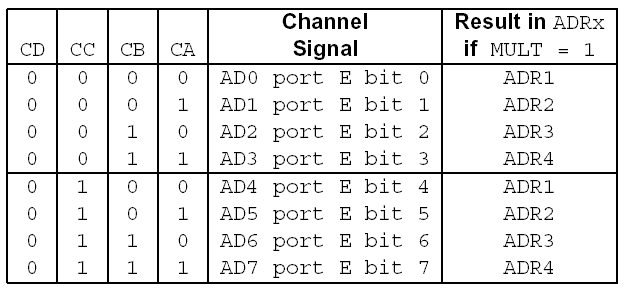

Figure 11 is a table that maps the settings of the channel select bits
to the readings that appear in the ADRx
registers when
MULT
equals one. If MULT
is zero, then the channel
select bits select the channel that gets converted into all four
ADRx
registers.
Figure 11: Settings of A/D Channel Select Bits
ADCTL
is located at address $1030; ADR1
through
ADR4
are located at addresses $1031 through $1034.
Port A implements a complex set of timer and counter hardware. This section will introduce some of the hardware features; for a more complete description of the timer/counter system, refer to the pink book, The Motorola M68HC11 Reference Manual.
There are five output timers. Each timer has independent configuration settings.
Each timer may be programmed to take an action on its output pin when a period of time elapses. Four possible actions may be taken: do nothing, set the output high, set the output low, toggle (invert) the output value.
Each timer may be programmed to generate an interrupt when its time period elapses. Typically, the interrupt is used to set up the timer again for its next cycle.
Each timer measures elapsed time by using a single 16-bit free running counter,
or TCNT
. Every timer has its own 16-bit output compare
register that it compares against TCNT
. When the value
of TCNT
matches the value in a timer's output compare register,
then the timer takes its programmed action (changing its output state, and/or
generating an interrupt).
A typical way to generate a square wave on a timer output is to write a delay
value into the timer's output compare register. The period of the square
wave is determined by the length of time that TCNT
must count
in order to match the timer's output compare register. By writing new values
into the output compare register, the timer can be set up to wait until
TCNT
advances to match it.
The following code uses timer 4 to generate a square wave. The square wave
is interrupt-driven: each time that TCNT
advances to match timer
4's output compare register, the interrupt routine writes a new value into
the output compare register, setting up the timer for another half-wave cycle.
The SetUp
portion of the code enables timer 4's interrupt, and
sets up the timer for a toggle each time the compare matches. Assume that
the interrupt vector for the timer points to the routine
Tim4Int
. This routine reads the value in the timer's output
compare register, and adds the value 1000 decimal to it. This way,
TCNT
will have to run for another 1000 counts before the timer
toggles its output again. The default speed for TCNT
is 500
nanoseconds per count, so the half-wave period of the resulting square wave
will be 500 ns × 1000, which is 0.5 milliseconds. The full square wave
would have a period of 1 msec, or a frequency of 1000 Hz.
SetUp LDAA #%00000100 * timer 4 for toggle setting STAA $1020 * Timer Control Register 1 (TCTL1) LDAA #%00010000 * timer 4 select bit STAA $1023 * Timer Interrupt Flag enable (TFLG1) STAA $1022 * Timer Interrupt Mask enable (TMSK1) Loop BRA Loop * do nothing; interrupt takes over ... ... Tim4Int LDD 1000 * load D register with 1/2 wave time ADDD $101C * add to Timer 4 output compare STD $101C * save sum back for next edge LDX #$1000 * used in next instruction BCLR $23,X $EF * clears interrupt flag RTI * ReTurn from Interrupt
Port A also has three "input-capture" registers. These registers may trigger when any of the following events happen: capture disabled, capture on rising edges only, capture on falling edges only, or capture any edge.
These registers may be used to time the length of a waveform.
Finally, one bit of Port A can be use for a "pulse accumulator" function.
An eight-bit register PACNT
can be configured to automatically
count pulses on this input pin.
The 68HC11 also has a real time interrupt (RTI
) function. This
function generates interrupts at a fixed periodic rate. This function would
be useful, for example, in generating a pulse-width modulated control of
the motor output lines.
The RTI
function can generate interrupts at any of four rates:
4.10 ms, 8.19 ms, 16.38 ms, and 32.77 ms.
TMSK2
, the Miscellaneous Timer Interrupt Mask, is used to control
the RTI system (located at address $1024). Figure 12 is a diagram of
this register.
Figure 12: Diagram of TMSK2
Register
The RTII
bit enables the RTI system when the bit is set to one.
Two bits in the PACTL
, the Pulse Accumulator Control Register,
are used to control the rate of the RTI interrupts. The following table shows
the relationship of the RTR1
and RTR0
bits to the
interrupt rate.
RTR1 | RTR0 | Interrupt Rate |
---|---|---|
0 | 0 | 4.10 msec |
0 | 1 | 8.19 msec |
1 | 0 | 16.38 msec |
1 | 1 | 32.77 msec |
The PACTL
register is located at address $1026.
RTR1
and RTR0
are the one and zero bits, respectively,
of this register.
See the M68HC11 Reference Manual for more details on the RTI system.
The serial interface port is controlled by five different registers. Of these, the following three are most important:
BAUD
. This register controls the baud rate (speed) of
the serial port. Location: $1028.
SCDR
. This register is used to receive and transmit the
actual serial data. Location: $102F.
SCSR
. This register provides status information that
indicates when transmissions are complete or when errors in transmissions
occur.
The following code sample initializes the serial port for transmission and reception of 9600 baud serial data:
LDX #$1000 * used as index register BCLR SPCR,X #PORTD_WOM * turn off wired-or mode LDAA #BAUD9600 * mask for 9600 baud speed STAA BAUD,X * stored into BAUD register LDAA #TRENA * mask for Transmit,Rec. enable STAA SCCR2,X * store in control register
The following code transmits a character and waits for it to finish tranmission:
LDY #$1000 * used as index reg STAA SCDR,Y * store A reg in SCDR WCLoop BRCLR SCSR,Y TDRE WCLoop * wait until data sent
The following code receives a character from the serial port:
LDX #$1000 * used as index reg. RCLoop BRCLR SCSR,X RDRF RCLoop * wait until char ready LDAA SCDR,X * input character to A
See the M68HC11 Reference Manual for more details on the SCI serial system.
Information about the THRAss11 assembler can be found here.
This document is adapted from "Introduction to 6811 Programming" by Fred G. Martin, The Media Laboratory at the Massachusetts Institute of Technology. The original document is Copyright c 199294 by Fred G. Martin. It may be distributed freely in verbatim form provided that no fee is collected for its distribution (other than reasonable reproduction costs) and this copyright notice is included.
